The Dometic Classic - S4 Top Hung Window

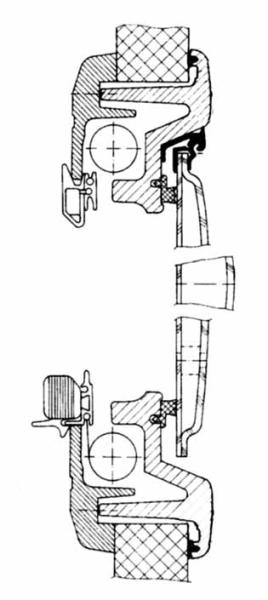

Edition: acrylic glazing, grey tinted, black outer frame (RAL 9005), creamwhite inner frame (RAL 9001). Blackout blind which is aluminium coated on the outside and white on the inside, integrated white flyscreen. Already pre-assembled for a quick and easy installation. Top hung window with telescopic stays and safety window catches. Outer frame and inner frame are bolted together from the inside and therefore provide a durable and efficient sealing.

The dimension of the outer frame is approx. 45mm (in width) and approx. 33mm (in height) bigger than the cut out dimension.

Mounting Advice:
Ready to install for a wall thickness of 26mm. For less wall thickness a inner frame (wooden frame) must be installed. For a thicker wall, a window frame must be used. You may need to use longer screws. Maximum wall thickness is 53mm.
Window is also suitable for the following vehicles (please remeasure and verify):
Vito since 2003, wheelbase 3200
Vito since 2014, wheelbase3200
