Compromise and trouble-free, trouble-free operation of all mains-powered devices, such as medical equipment, radio, charging holders (cell phone, radios, hand lamps, batteries, etc.), laptop, PC, air conditioning, coolers, power tools (drill, angle grinder, etc), TV, SAT, TFT, microwave, coffee machine, hair dryer, fan, lights, vacuum cleaner, refrigerator, etc.

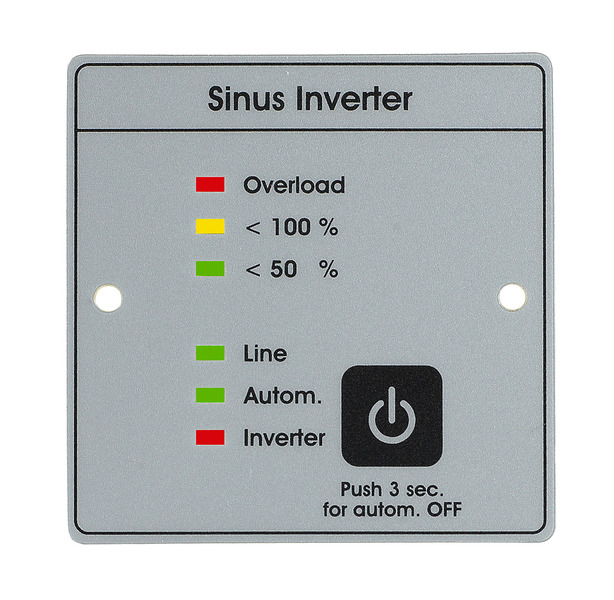

Pure sine wave so that the output voltage is supplied with high mains voltage quality. Includes user-friendly control panel for flexible installation, rotated or remote control depending on the desired installation position.
Further specifications:
- Nominal battery voltage (DC) in [V]: 12
- Output voltage (AC) in [V]: 230 pure sine
- Output frequency: 50 Hz crystal stabilized
- Efficiency: > 93 %
- Output power continuous in [W]: 600
- Output power short / peak in [W]: 840 / 1200
- Minimum battery capacity (recommended) in [Ah]: > 80
- Current consumption (DC) at rated power in [A]: 56
- Battery overvoltage max. [V] 16
- Battery undervoltage min. in [V]: 10.5
- Own consumption in [W]: 6 (switched on, no load)
- Own consumption in standby in [W]: 5 (no load)
- Battery connection cable: 10 mm2, 1.2 m
- Temperature range [°C]: -20 to +45
- Degree/class of protection: IP 21
- Dimensions (WxHxD) in [mm] - Dimensions incl. mounting flanges and connectors: 139 x 74 x 332
- Weight in [g]: 2300
- Standards (CE): EN 60950
- Environmental conditions: Humidity: max. 95% room humidity, non-condensing
