Internet connectivity wherever your journey takes you.

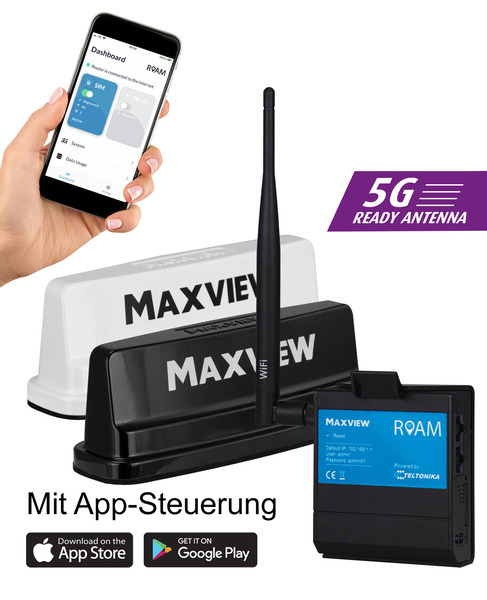

Maxview-Roam, a powerful mobile WIFI solution designed to provide uncompromised internet connectivity specifically for use in camping vehicles.
The powerful LTE antenna is designed to receive maximum 3G/4G signal even in remote locations, even where your smartphone has poor or no reception. In conjunction with the LTE router, a secure and reliable hotspot is created in your vehicle.
The included router is capable of receiving 3G/4G and WiFi signals, the router is set to LTE- reception when shipped. But can be switched to WiFi reception if necessary.
The Maxview-Roam provides an Internet connection while driving and when stationary for Internetempfang inside and outside the vehicle.
The robust router in aluminum housing and 12 V connection with wall mount was developed specifically for vehicles.
The Maxview-Roam is an omnidirectional antenna, which was developed specifically for recreational vehicles to allow in rural, remote areas as well as full campsites internetempfang.
The router is unlocked for each SIM card and thus with each provider to operate. Thus, you can always choose the provider that works best in your vacation country.
The roof mounting and mounting accessories allow for easy commissioning.
Easy installation
The standard installation is done with a cable feed through the roof directly under the antenna. With a plastic hollow screw, through which the cables also go, the antenna
is fixed on the roof from the inside. The self-adhesive foam pad seals the antenna.
For the plastic hollow screw a hole of 25 mm is required. The attachment is suitable for roof thicknesses of 10 - 50 mm.

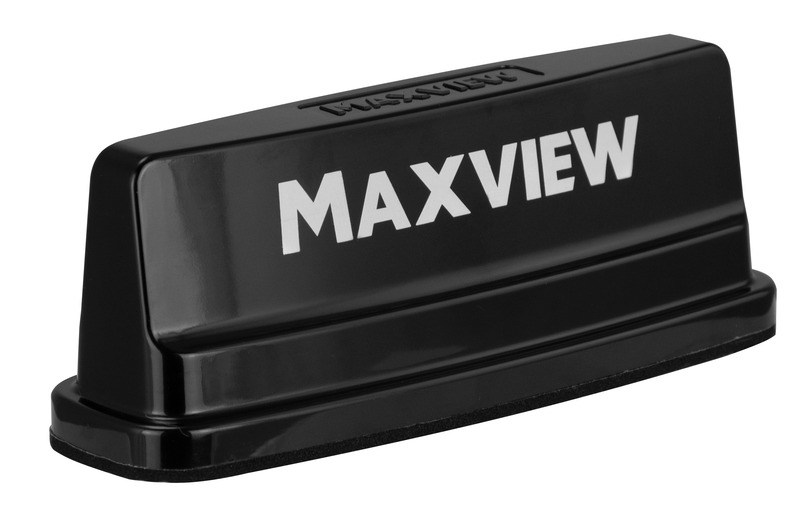

Technical data LTE antenna:
Type: omnidirectional antenna MIMO
Frequency: 698MHz to 6000MHz includes the frequencies of 4G u. 5G
Gain: 5.9 dBi - 8.8 dBi
Cable length: 0.8m
Material: aluminum base plate, UV stable ASA cover
Dimensions: H65 mm x B180 mm x D60 mm
Weight: 500 g
Router:
Router type: LTE and WiFi
Speed: up to 150 Mbps
max. connection: up to 50 devices
Voltage: 12 V
Power consumption: < 5 W
SIM card: user selectable
Dimensions: H83 mm, x W74 mm x D25 mm
Weight: 125 g
