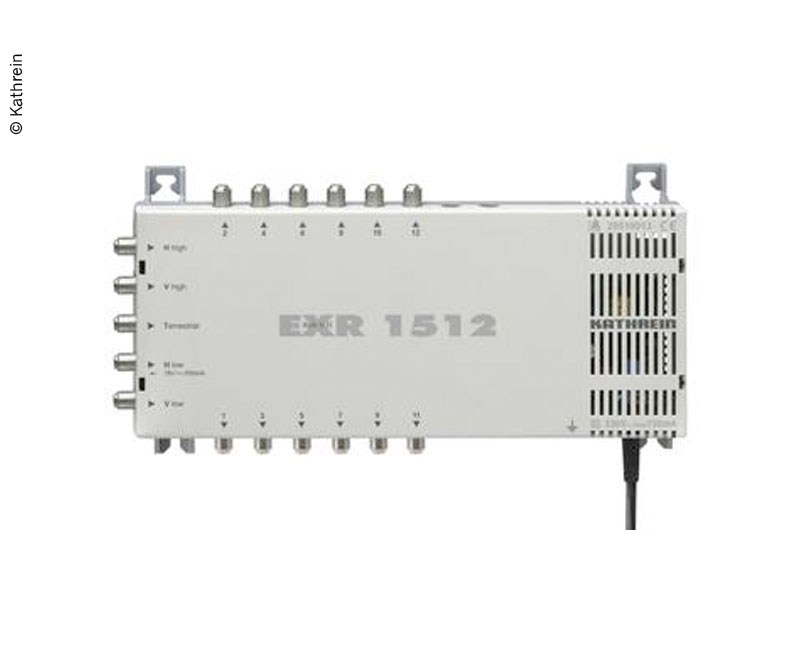

EXR 1512 Multiswitch 5 to 12 Multiswitch 5 to 12, 47-862/4 x 950-2150 MHz, F connectors, integrated power supply: 18 V/550 mA, connection attenuation: SAT 12-7 dB/Terr. 8-4 dB, decoupling: H/V 25 dB, output/output 25 dB, control: V/H 11-14.5/16-19 V, low/high 0/22 kHz
With integrated amplifier for low connection attenuation in satellite and terrestrial range
Preem phase for equalization of cable attenuation integrated
High decoupling between the outputs
LNB remote power supply via input horizontal low. All other inputs are voltage-free (thus operation with UAS 585 possible).
Low power consumption due to highly efficient, short-circuit-proof switching power supply and power-saving concept (each individual multiswitch branch is supplied by the connected receiver and switched off when the receiver is switched off)
For indoor mounting
