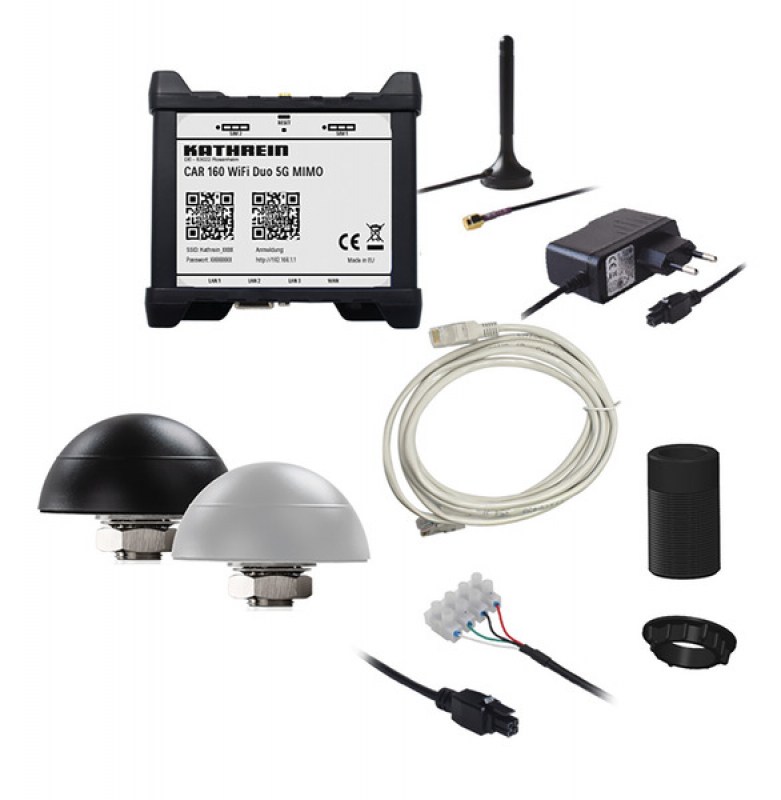

The CAR 160 WiFi Duo 5G MIMO in black dual SIM WLAN router set enables the connection of mobile devices (cell phone, tablet, notebook) via an existing WLAN or the mobile data of an inserted SIM card with the Internet.

For Internet in motorhome / caravan with 5G outdoor antenna (4 in 1), two SIM card slots and FindMyCaravan function

Technical data:

• Antenna connections: 2 x SMA for LTE | 2 x RP-SMA for WLAN | 1 x SMA for GPS
• Ethernet ports: 3 x LAN | 1 x WAN
• Other ports: 1 x USB host
• Mobile standards: 4G/LTE (Cat. 4), 3G, 2G
• WLAN standard: 802.11b/g/n IEEE
• WiFi Security: WPA2-PSK
• Input voltage range: 9 - 30 V
• Current consumption typ.: 170 mA
• Power consumption typ.: 2 W
• Allow. Ambient temperature: -40 to +75 °C
• Dimensions (W x H x D): 109 x 50 x 103 mm

Antenna:

• GNSS frequency range:1575.42 - 1610 MHz
• GNSS polarization:RHCP
• GNSS LNA gain:28 ± 2 dB
• GNSS impedance:50 Ω
• GNSS connectors:SMA connector
• LTE frequency range:698 - 960 MHz | 1710 - 2690 MHz | 3400 - 3800 MHz
• LTE polarization:Linear
• LTE Gain:3 dBi
• LTE Impedance:50 Ω
• LTE Connectors:2 x SMA connector
• WiFi Frequency Range:2400 - 2483.5 MHz | 4900 - 5825 MHz
• WiFi Polarization:Linear
• WiFi Gain:2 dBi
• WiFi Impedance:50 Ω
• WiFi Connectors:2 x RP-SMA connector
• Ingress Protection:IP67 (weatherproof)
• Dimensions: Diameter 110 mm x H55 mm
