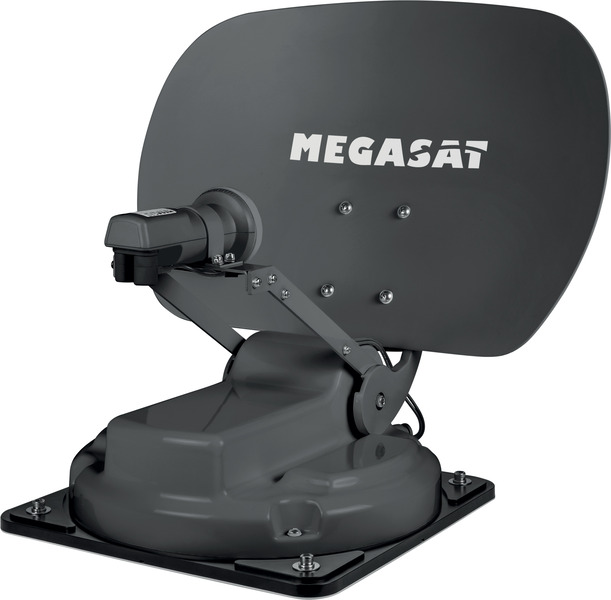

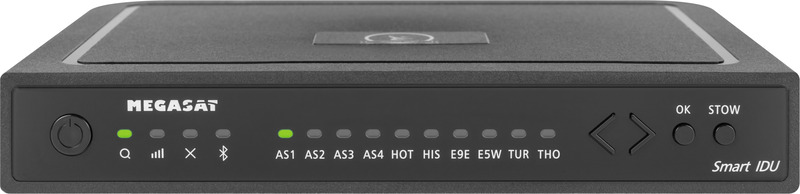

The Caravanman Kompakt 3 is the ideal antenna for caravans, vans or motorhomes with a small mounting surface. Despite the small mirror strong reception even in the peripheral areas of Europe. Very compact design with high reception power and 10 pre-programmed satellites. The satellite can be selected either on the control unit or via the app on the mobile device. The antenna is connected to the control unit with only one coaxial cable.

Technical data:

• LNB type: universal LNB
• Frequency band: Ku-band
• Input frequency range: 10.7 GHz - 12.75 GHz
• Polarization: V/H
• Signal gain: 33 dBi @ 12.7 GHz
• Minimum EIRP (footprint): 49 dBW
• Elevation (tilt): 15° - 62°
• Azimuth (rotation): 360°, 2-axis DC motor
• Controller with Bluetooth module
• Temperature range: -25°C - +70°C
• Power supply: DC 12 volt
• Dimensions when folded: W 46 x H 17 cm
