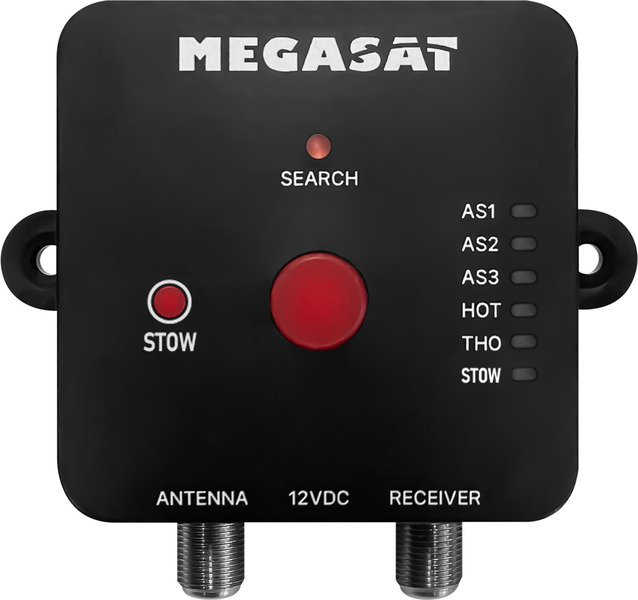

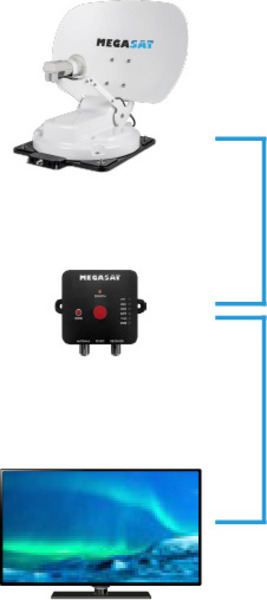

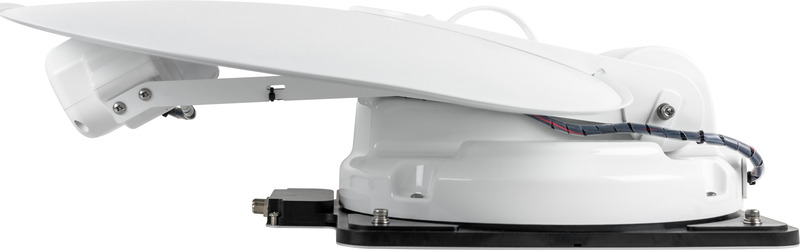

At the touch of a button, the antenna automatically aligns itself with the desired satellite. With a height of just 16.5 cm, it has virtually no impact on the vehicle’s overall height. Its compact swivel range of 99 cm fits on almost any vehicle roof. Thanks to integrated GPS, the antenna knows its location right from the start and automatically calculates the correct elevation angle. The polarisation angle is adjusted automatically, enabling faster and more precise alignment, particularly in areas on the edge of satellite coverage. The mini control unit is pre-programmed with five common satellites (e.g. Astra 1) – transponder updates are not required. The antenna is designed for use with two devices and is easily connected to the control unit via a single coaxial cable.

Further specifications:

• Antenna type Offset dish
• Number of users 2
• LNB type Universal LNB
• Frequency band Ku band
• Input frequency range 10.7 GHz to 12.75 GHz
• Polarisation V/H
• Signal gain 34.6 dBi @ 12.7 GHz
• Minimum EIRP (coverage area) 46 dBW
• Elevation 5° - 50°
• Azimuth 360°
• Motor control 2 - axis DC motor
• Auto-skew function yes
• GPS receiver yes
• Temperature range -25°C to +70°C
• Power supply DC 12 volts
• Dish size 560 x 410 mm (W/H)
• Programmed satellites Astra 1 (19.2° East), Astra 2 (28.2° East), Astra 3 (23.5° East), Hotbird (13° East), Thor (0.8° West)
• Antenna dimensions 560 x 165 x 546 mm (W/H/D)
• Antenna weight 5.1 kg
• Control unit dimensions 60 x 24 x 60 mm (W/H/D)
• Control unit weight 100 g
