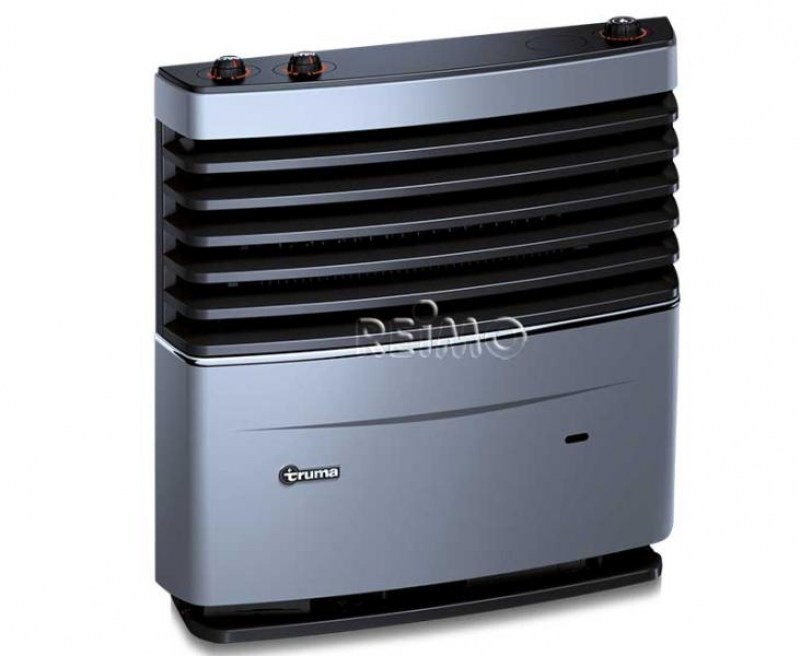

The Truma S 5004 is characterized by its absolute reliability and great performance: With two burners and heat exchangers each, you have it comfortably warm at any time of year. You can set the temperature and fan output precisely using the practical rotary knobs. You can achieve an average room temperature of around 22 °C without using the fan - for optimum warm air distribution, we recommend operating the caravan heater with a fan. This also prevents the air from condensing on cold surfaces. The booster function enables particularly fast distribution of the warm air. In addition, your caravan is also dehumidified.The design is timelessly modern, so the caravan heater with its flat cladding fits perfectly into any interior. The Truma S 5004 is approved for installation in the caravan.
- Comfortable radiant heat for optimal indoor climate
- Truma S 5004 simply adjust at the ergonomically shaped control panel
- Faster warm air distribution and dehumidification through booster function
- Efficient, robust and low maintenance
- Various equipment options, for example, fireplace cladding with flame acoustics
Technical data:
- Operating pressure: 30 mbar
- Fuel consumption: 60 - 480 g/h

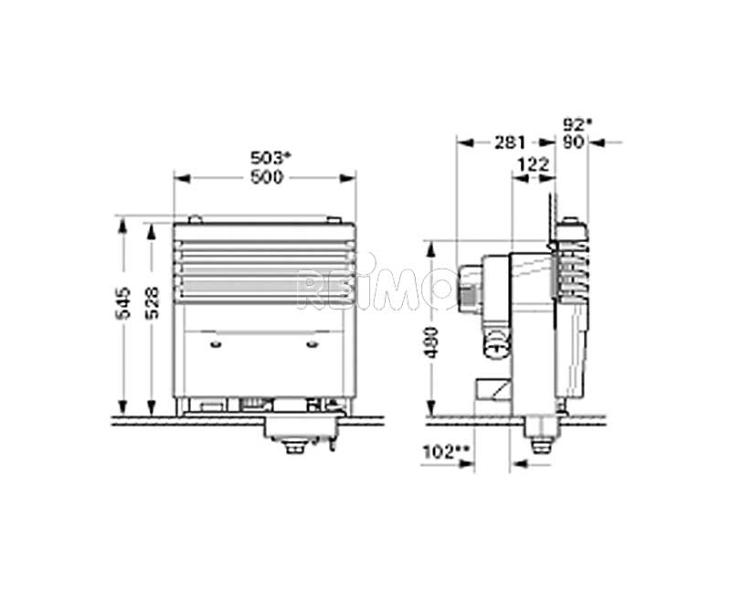

- Installation cutouts (L x W x H): 380 x 510 x 505 mm
Optional accessories:
UltraHeat Electric auxiliary heater Art.-No. 73041
- With room thermostat kp. with control panel and 3 m cable
Truma blower - Blower with integrated control panel with booster for installation in the heating panel
- Art.- Nr. 73170 Blower with integrated control panel (black)
- Art.- Nr. 731711 Blower with external control panel (black)
- Art.-. No. 731731 Blower TN-3 with external control panel (black)
- Art.- Nr. 73178 Adapter plate TEB/TN for installation of new blowers on old S-heaters and for mounting of old blowers on new S-heaters.
Fire remote indicator for subsequent installation in the paneling of the heaters:
Comfort package AXk-2 cpl. with Airmix for all Truma blowers from BJ. 05/96
Covering chrome and lighting (only in conjunction with Truma S5004) with illuminated, chrome gas control panel, with touch sensor, chrome applications, trim:
- Titangrey: Art.-.No. 73164
- Pearlgrey: Art.-No. 73165
Retrofit trim with chrome applications:
- Titangrey: Art.-.No. 73186
- Pearlgrey: Art.-No. 73187

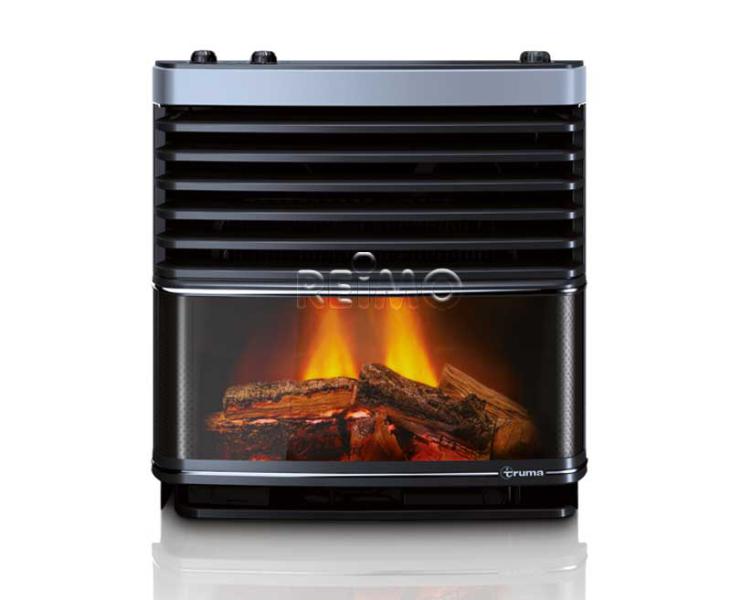

Fireplace cladding:
- Pearlgrey: Art.-No. 73183
Lighting set as a retrofit kit Art.- No. 73181:
- For heaters with 2 integrated blower control part. Contents: 1x illuminated chrome-plated gas control panel, 1x illuminated chrome-plated blower control panel, 1x sensor board
Note: The blower must be ordered seperately with!
