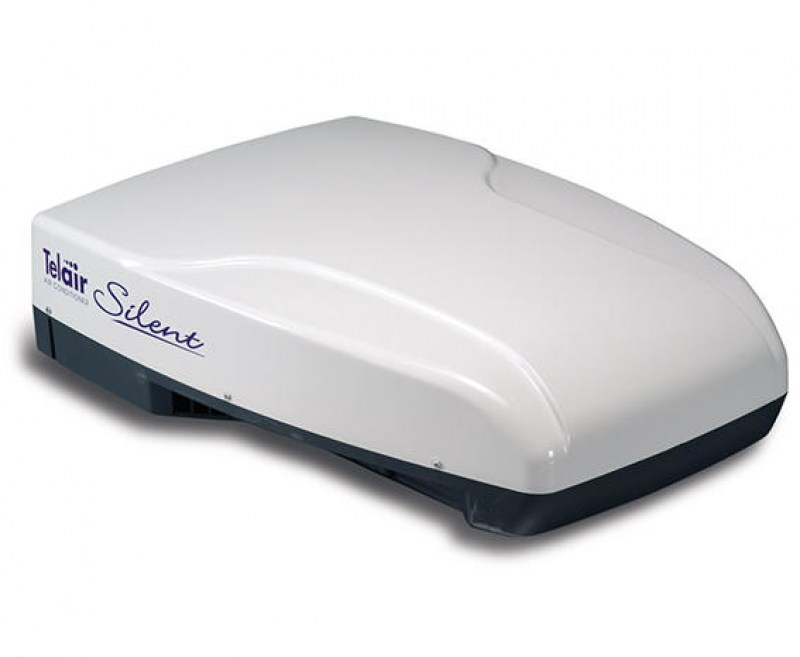

Heat pump air conditioner
Specially designed for roof mounting on medium and large motorhomes and caravans.

The very quiet operation (indoor/outdoor) is particularly worth mentioning.
Integrated heat pump:
The heating system with high-performance heat pump delivers a heating output of 2.45 kW with a consumption of only 0.92 kW.
The heat pump is effective at outside temperatures up to +4°C.
above this value, the performance is drastically reduced.

Automatic control function:
After activating the AUTO function, the air conditioning system automatically selects the ideal ventilation speed and the heating or cooling function.

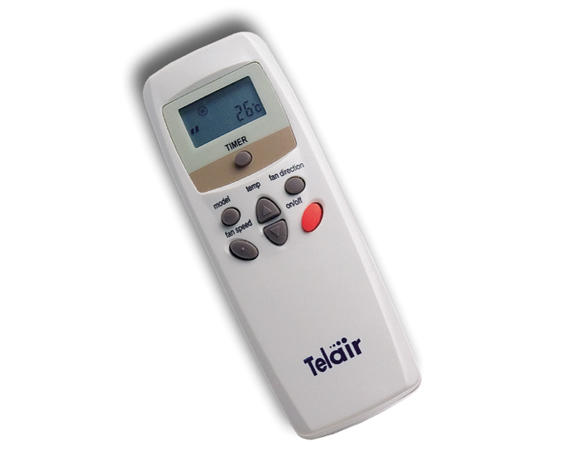

Comfortable remote control:
Programmable timer with ON/OFF button and diffuser illumination.
All functions can be performed from the remote control.

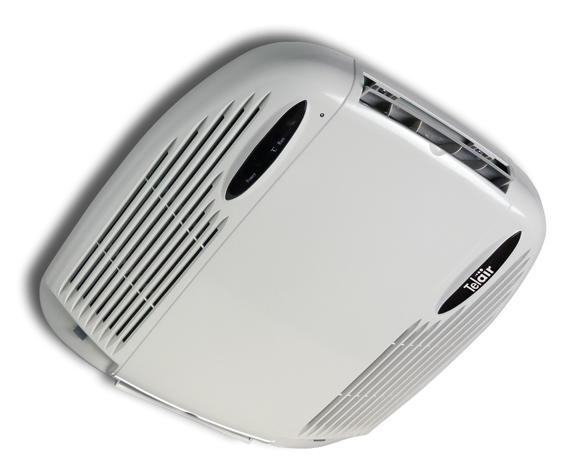

The roof air conditioner has an anti-ice sensor and a cabin air filter (washable and replaceable).

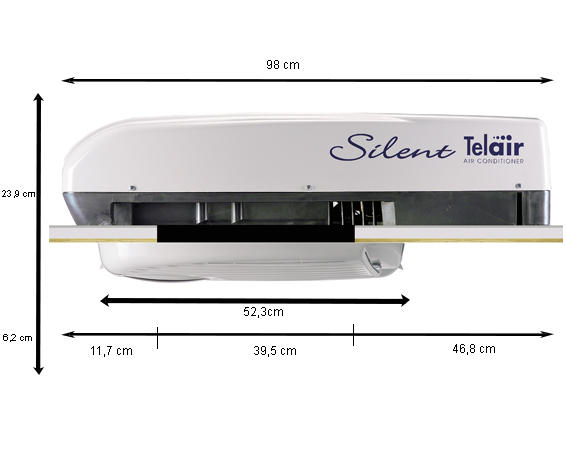

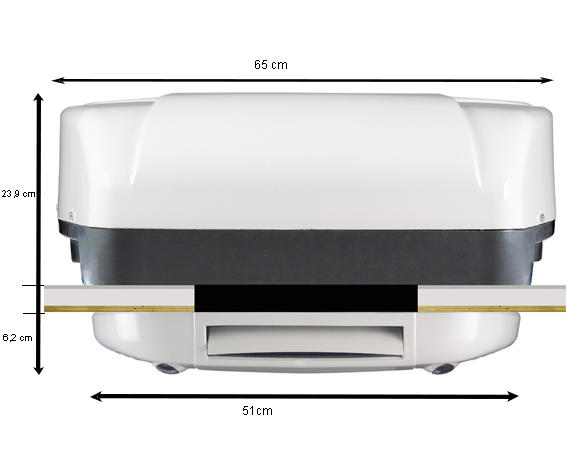

The Telair air conditioner is suitable for roof thicknesses from 30 to 70 mm.


Technical data:
Cooling capacity: 8,200 BTU / 2.40 kW
Heating capacity: 8,300 BTU / 2.45 kW
Ventilation stages: 3 and one automatic
Mains voltage: 230V / 50Hz
Medium current consumption: 4.2 A Cooling / 4.5 A Heating
Startup current: 18 A (0.15 sec.))
Power consumption: 900 W Cooling / 920 W Heating
Generator required: 2200 W
Max. power consumption: 920 W Cooling / 920 W Heating
Generator required: 2200 W
Max. power consumption: 2200 W
Max. power consumption: 900 W Cooling / 920 W Heating
Generator required: 2200 W
Max. power consumption: 920 W Air cooling: 480 m3/h
