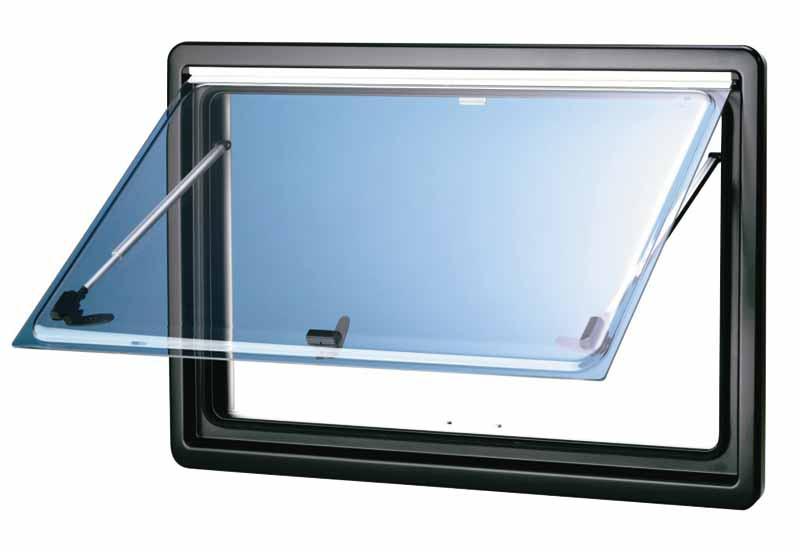

The Dometic Classic - S4 Top Hung Window

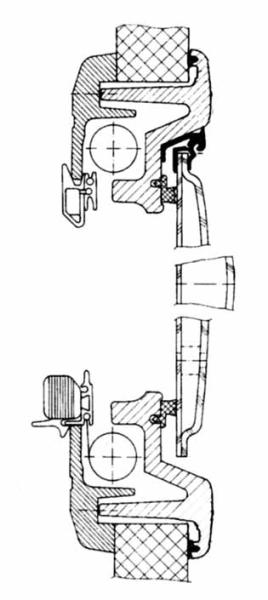

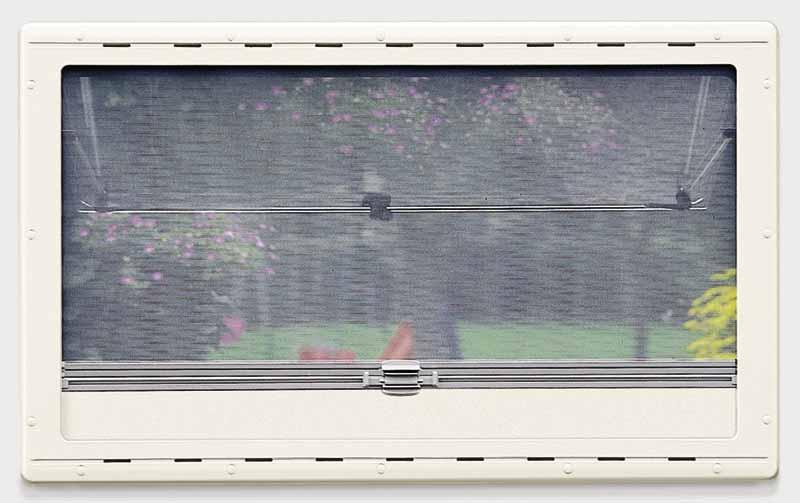

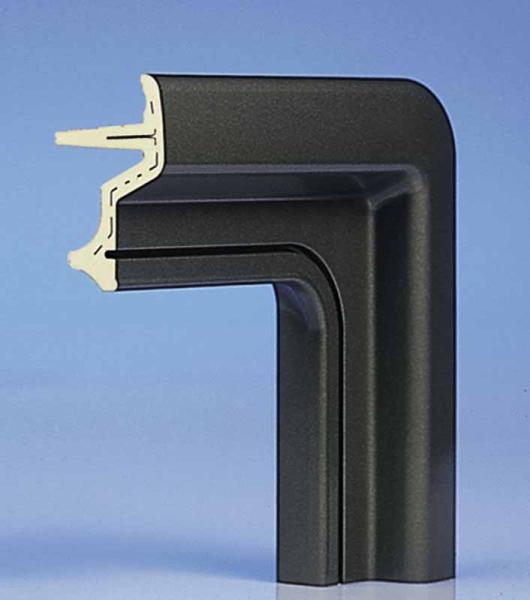

Edition: acrylic glazing, grey tinted, black outer frame (RAL 9005), creamwhite inner frame (RAL 9001). Blackout blind which is aluminium coated on the outside and white on the inside, integrated white flyscreen. Top hung window with telescopic stays and safety window catches. Already pre-assembled for quick and easy installation. Outer frame and inner frame are bolted together from the inside and therefore provide durabel and efficient sealing.
The dimension of the outer frame is approx. 45mm (in width) and 33mm (in height) bigger than the cut out dimension.

Mounting Advice:
Ready to install for a wall thickness of 26mm. For less wall thickness an inner frame (wooden frame) must be installed. For a thicker wall, a window frame must be used. You may need to use longer screws. Maximum wall thickness: 53mm.
Window is also suitable for the following vehicles (please remeasure and verify):
Sprinter/Lt KR until 2006, wheelbase 3665
Ford Transit LR until 2012,wheelbase 3300
Fiat Duato MR since 2006, wheelbase 3450
Fiat Ducato MR until 2006, wheelbase 3200
